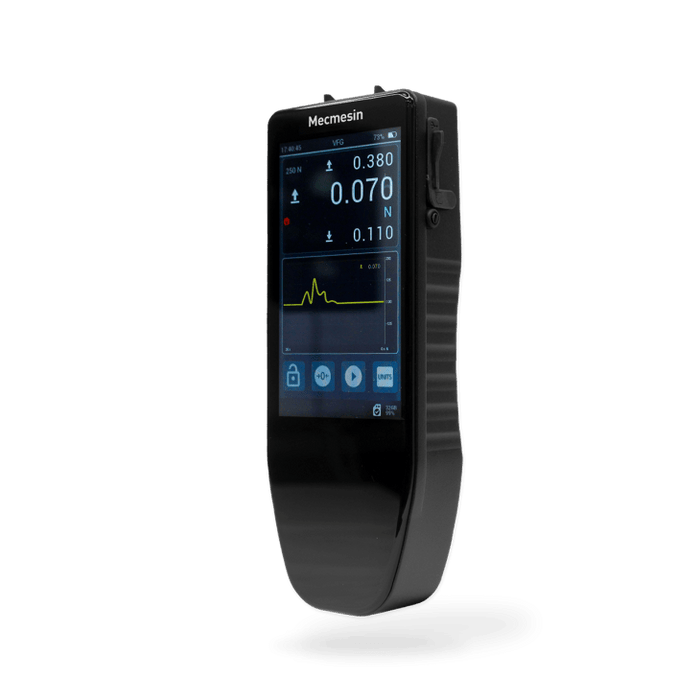

VFG Touchscreen Force Gauge

The VFG is Mecmesin’s most advanced digital force gauge.

Powered by Vector OS, it combines high accuracy with an intuitive touchscreen interface, making configuration, data review and customisation simple for any user.

Available in ten models from 2.5 to 2500 N (0.5 to 550 lbf), the VFG suits a wide range of tension and compression tests. All models offer an accuracy of ±0.1% of full scale with results displayed in standard units (N, kN, mN, gf, kgf, lbf, ozf).

Designed for handheld use or as part of a test stand system, the VFG excels in production, quality control and R&D environments.

In addition to its built‑in loadcell for push and pull testing, it can also act as a universal display for external ‘smart’ force and torque transducers, extending its use to a broader range of capacities and torsion tests - all from a single gauge.
